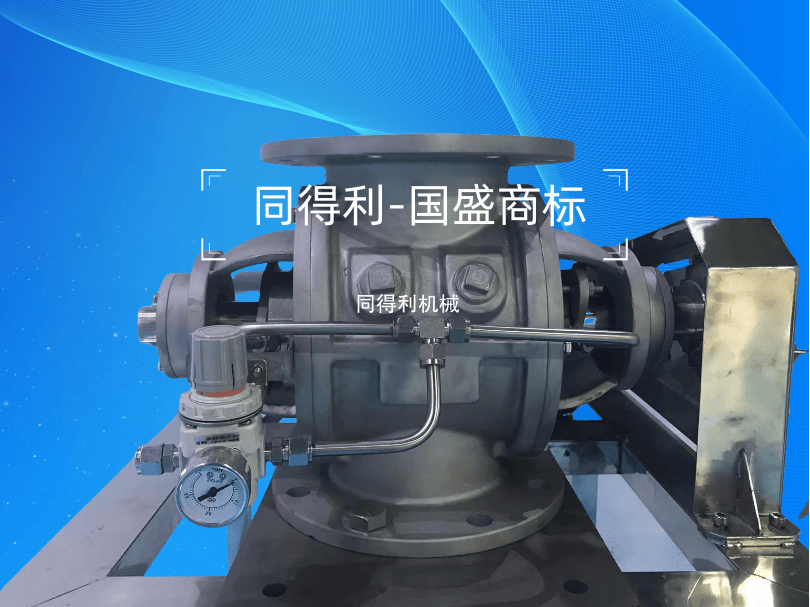

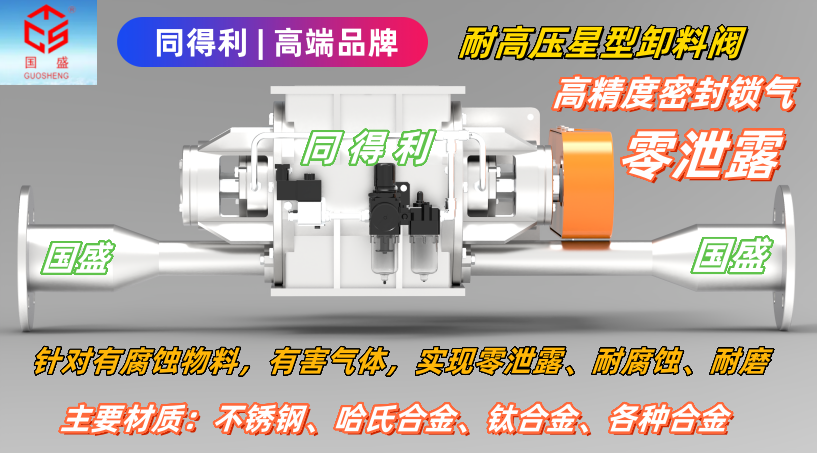

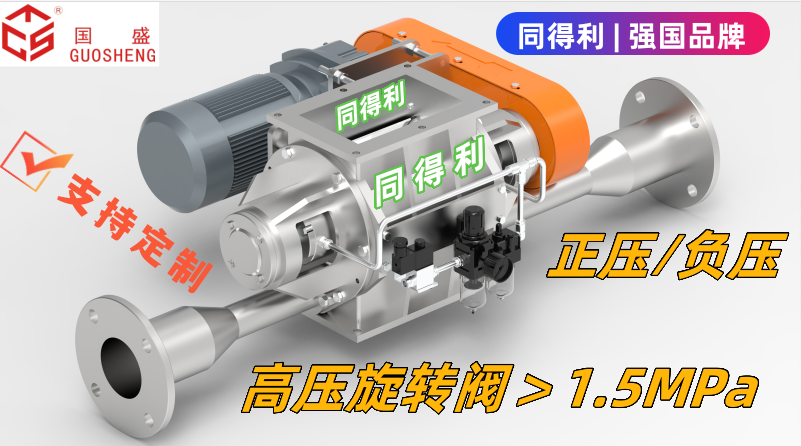

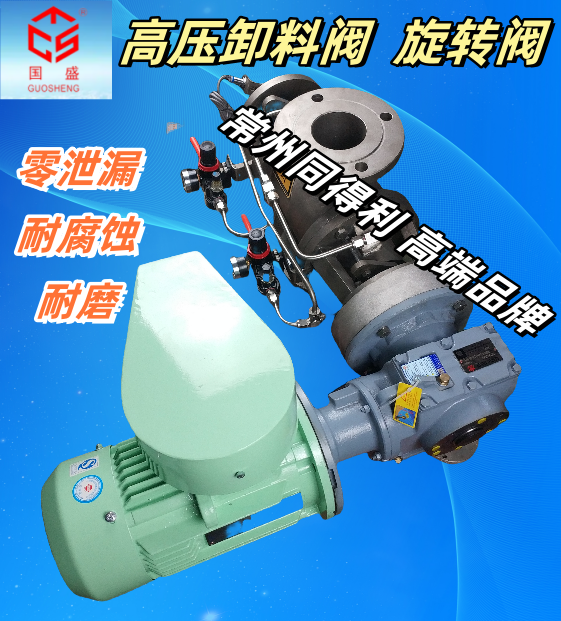

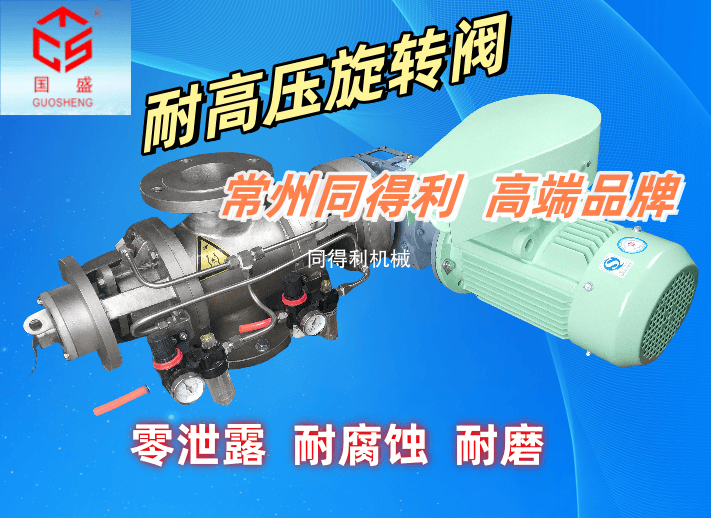

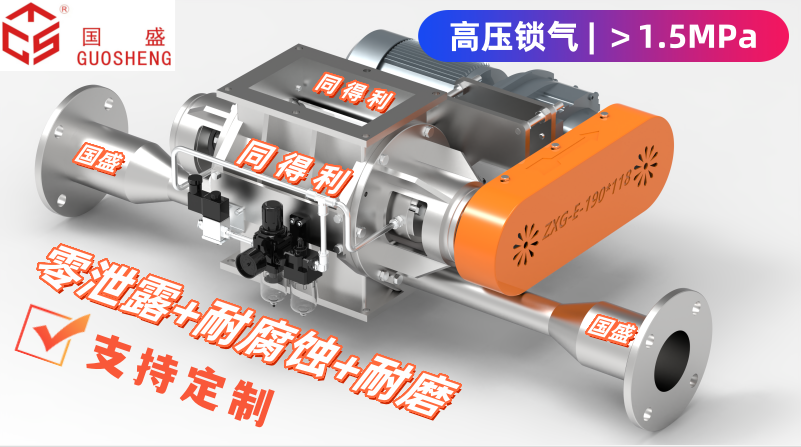

耐高壓星型旋轉閥主要結構：殼體、葉輪、端蓋，采用機械手噴涂，碳化鎢、納米陶瓷、四氟。

高壓閥主要用于輸送鋰電池正極材料、磷酸鐵鋰、三元材料、化工粉料等。

耐高壓星型旋轉閥特點：杜絕金屬接觸，防腐蝕，增加使用壽命。

針對有腐蝕物料、有害氣體，實現零泄漏、耐腐蝕、耐磨。壓力<1MPa為常規品，高壓大于1MPa或10Kg/2 可定制 【電話/微信咨詢：陳經理18068546632】

軸承外置式安裝、經久耐用、性能優異。

常州同得利提供鏈驅動、直連驅動多種安裝方式。

高溫旋轉閥，其外殼、蓋板、轉子以及軸承部件都采用循環水冷卻，密封材料和軸承部分能承受在高溫下正常運轉，適用于鋼廠、電廠、環保、污泥逢燒、桔桿逢燒、窯底出料、鍋爐排料、真空殺菌等行業。也可根據用戶要求進行結構設計制造，確保安全正常工作。【電話/微信咨詢：陳經理18068546632】

<1000℃為常規品，高溫大于1000℃ 可定制。

           《掃二維碼-添加 陳經理 微信-咨詢產品/報價》

The main structure of the high-pressure resistant star shaped rotary valve includes a shell, impeller, and end cover, which are sprayed by a robotic arm, tungsten carbide, nano ceramic, and PTFE.

High pressure valves are mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, chemical powders, etc.

Characteristics of high-pressure star shaped rotary valve: eliminating metal contact, preventing corrosion, and increasing service life.

To achieve zero leakage, corrosion resistance, and wear resistance for corrosive materials and harmful gases. Pressure<1MPa is a standard product, while high pressure greater than 1MPa or 10Kg/2 can be customized

External installation of bearings, durable and excellent performance.

Changzhou Tongdeli provides multiple installation methods for chain drive and direct drive.

High temperature rotary valve, its shell, cover plate, rotor, and bearing components are all cooled by circulating water. The sealing material and bearing parts can withstand normal operation at high temperatures, and are suitable for industries such as steel mills, power plants, environmental protection, sludge burning, orange stem burning, kiln bottom discharge, boiler discharge, vacuum sterilization, etc. Structural design and manufacturing can also be carried out according to user requirements to ensure safe and normal operation.

<1000 ℃ is a standard product, while high temperatures above 1000 ℃ can be customized.
