耐壓閥 正負壓輸送卸料閥/
-

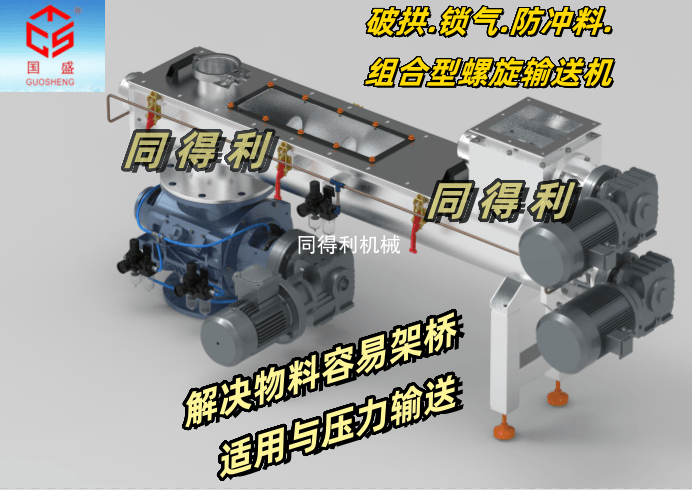

【國產 VS 進口】螺旋輸送機-蛟龍上料機/ 絞龍螺旋輸送機,螺旋上料機,螺旋輸送機,螺桿輸送機,螺桿上料機
產品介紹螺旋輸送機/?絞龍輸送機/螺桿上料機專為塑料及粉體生產加工行業設計制造,本機與物料接觸部分全部采用不銹鋼制作,可與各種規格擠出機,高速混合機,塑料攪拌機配套使用,廣泛適用于各類粉狀,粒狀,回收破碎等物料的上(送)料用途。 可多機串聯使用,具有:自動控制加料,維修方便,安全可靠,提高工作效率等優點。接觸物料采用不銹鋼制作,輸送過程中原料完全不受污染,不帶入任何異物,能使生產過程中實現封閉自動化?! he screw conveyor/auger conveyor/screw feeder is designed and manufactured specifically for the plastic and powder production and processing industry. The parts in contact with the materials are all made of stainless steel and can be used in conjunction with various specifications of extruders, high-speed mixers, and plastic mixers. It is widely used for feeding various types of powder, granular, recycled and crushed materials. It can be used in series with multiple machines and has the advantages of automatic feeding control, convenient maintenance, safety and reliability, and improved work efficiency. The contact material is made of stainless steel, and the raw materials are completely uncontaminated during the transportation process, without bringing in any foreign objects, which can achieve closed automation in the production process.【電話/微信咨詢:陳經理18068546632】 【螺旋輸送機類型】: 1、破拱.鎖氣.防沖料.組合螺旋送料機; 2、雙向螺旋輸送機; 3、精準喂料螺旋送料機; 4、子母螺旋輸送機 / 雙軸; 5、提升螺旋輸送 / 垂直; 6、雙螺旋輸送機; 7、滑桿快拆螺旋送料機; 8、高溫螺旋輸送機; 9、水冷式螺旋輸送機 ≥1000℃ 。 Spiral conveyor type: arch breaking Lock the air Anti erosion material Combination spiral feeder; Bidirectional screw conveyor; Precision feeding screw feeder; Mother child screw conveyor; Enhance spiral conveying; Double helix conveyor; Sliding rod quick disassembly spiral feeder; High temperature screw conveyor. 【主要材質】:不銹鋼食品拋光304.316.310.等.鈦合金.噴涂陶瓷.碳化鎢.四氟.陶瓷.尼龍.碳鋼.定制. (總有一款適合您的需求)【電話/微信咨詢:陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢螺旋輸送機》 Main materials: stainless steel food polishing 304.316.310. etc Titanium alloy Spray painted ceramics Tungsten carbide Tetrafluoroethylene Ceramics Nylon Carbon steel. 【電話/微信咨詢:陳經理18068546632】 【電話/微信咨詢:陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢螺旋輸送機》 《掃二維碼-添加 陳經理 微信-咨詢絞龍螺旋輸送機》查看詳情 +
-
【鏈驅動】正壓輸送旋轉閥-粉體/ 粉體旋轉閥,粉料旋轉閥,正壓旋轉閥,氣力輸送旋轉閥
產品介紹正壓稀相氣力輸送系統是采用羅茨風機或者羅茨空壓泵作為動力源。利用空氣動能作為輸送介質,物料以比較高的速度并以分散懸浮的狀態在管道中輸送。輸送的壓力一般根據工況條件不同可在幾千帕到幾百千帕范圍內調整?! ±脷怏w動壓,物料以較高速度在輸送管道中前進(8m/s-25m/s ),輸送壓力沿輸送管道逐漸降低; 連續輸送,輸送流態、輸送壓力與輸送速度、料氣比基本保持穩定; 在一定情況下,輸送距離較正壓密相短、較負壓稀相長; 輸送過程中,羅茨鼓風機的出口空氣溫度較高; 為了防止串氣,系統需要配備密閉性較好的旋轉供料閥/旋轉閥/星型卸料閥/關風機卸料器?!倦娫?微信咨詢:陳經理18068546632】 正壓輸送旋轉閥/風送式旋轉閥主要用于化工、食品、藥材、鋰電、塑料原料輸送。 針對物料粘接,風力直吹轉子清理物料。 主要材質:不銹鋼304-316、鈦合金、鋁合金、各種合金。 《掃二維碼-添加 陳經理 微信-咨詢鏈驅動正壓旋轉閥》 The positive pressure dilute phase pneumatic conveying system uses Roots blower or Roots air pump as the power source. Using air kinetic energy as a conveying medium, materials are transported in pipelines at relatively high speeds and in a dispersed and suspended state. The conveying pressure can generally be adjusted within the range of several thousand pascals to several hundred kilopascals according to different working conditions. Using gas dynamic pressure, the material advances at a high speed in the conveying pipeline (8m/s-25m/s), and the conveying pressure gradually decreases along the conveying pipeline; Continuous conveying, the conveying flow state, conveying pressure and speed, and material gas ratio remain basically stable; In certain circumstances, the conveying distance is shorter than that of the positive pressure dense phase and longer than that of the negative pressure dilute phase; During the conveying process, the outlet air temperature of the Roots blower is relatively high; In order to prevent air leakage, the system needs to be equipped with a well sealed rotary feeding valve/rotary valve/star shaped discharge valve/shut-off fan discharge device. Positive pressure conveying rotary valve/pneumatic rotary valve is mainly used for conveying chemical, food, medicinal materials, lithium batteries, and plastic raw materials.查看詳情 +
-
【防卡型】DN300偏置式旋轉閥/ 偏置卸料閥,DN300旋轉閥,偏置星型卸料器,偏置式旋轉閥
產品介紹防卡型旋轉閥主要用于顆粒料、塊狀料、片狀料和重力下料和氣力輸送卸料,配備特殊防卡結構的導流槽。一般采用V型進料口,葉片頂端倒角;一體式閥體排氣口?! 》ㄌm形式:圓形、方形、偏置式?! ∑檬叫D閥主要用于鋼廠、電廠、水泥、礦山原料輸送。適用于塊狀、顆料、片狀物料,起到很好的防卡防堵作用。【電話/微信咨詢:陳經理18068546632】 1.適用于≤4kg/cm2系統壓力或壓差?! ?.設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置,提高填充效率?! ?.防切料入口設計,即便上游充滿物料也可安全啟動?! ?.軸承外置式安裝、經久耐用、性能優異?! ?.提供鏈驅動、直聯驅動多種安裝方式。 6.根據需求配置減速機電機?! ?.材質主要有:不銹鋼304-310系列、鋁合金、鈦合金等?!倦娫?微信咨詢:陳經理18068546632】 我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥,快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?!倦娫?微信咨詢:陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢偏置式旋轉閥》 Anti jamming rotary valves are mainly used for granular materials, block materials, sheet materials, gravity feeding, and pneumatic conveying unloading, equipped with special anti jamming structure guide grooves. Generally, a V-shaped feed inlet is used with chamfered blade tips; Integrated valve body exhaust port. Flange forms: circular, square, offset. Offset rotary valves are mainly used for conveying raw materials in steel mills, power plants, cement, and mines. Suitable for block, particle, and sheet materials, it has a good anti jamming and anti blocking effect. 1. Suitable for system pressures or pressure differentials of ≤ 4kg/cm2. 2. Set up an exhaust port (selected for positive pressure conveying) to send the high-pressure gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency. 3. Anti cutting material inlet design, even if the upstream is filled with materials, it can be safely started. 4. The bearing is externally installed, durable, and has excellent performance. 5. Provide multiple installation methods for chain drive and direct drive. 6. Configure the gearbox motor according to the requirements. 7. The main materials include stainless steel 304-310 series, aluminum alloy, titanium alloy, etc. Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves and other products. Widely used in equipment for industries such as lithium batteries, grain, feed, petrochemicals, pharmaceuticals, starch, oils and fats, chemical drying, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.查看詳情 +
-
【密封鎖氣】防卡式卸料閥-不卡料|不堵料/ 鎖氣卸料閥,密封卸料閥,防卡式卸料閥,防卡旋轉閥,防卡星型卸料器
產品介紹卸料閥又稱卸料器、星型卸料閥、旋轉閥、旋轉卸料閥、旋轉給料器、關風機、關風器、鎖氣閥、電動鎖氣器、旋轉供料閥,通常星型卸料器的結構是由帶有數片葉片的轉子葉輪、殼體、密封件及減速器、電動機等組成?! nloading valve, also known as unloader, star shaped unloading valve, rotary valve, rotary unloading valve, rotary feeder, shut-off fan, shut-off fan, air lock valve, electric air lock, rotary feeding valve, is usually composed of a rotor impeller with several blades, a housing, seals, a reducer, an electric motor, etc. Z(B)FK防卡式卸料閥系列: 壓力:2kg/cm2系統壓力或壓差?! ≡龃笕肟?出口:正方形和圓形?! ≥S承外置式:有效的防止粉塵侵入軸承,增大設備適應較高溫度的使用范圍?! ◎寗臃绞剑烘滘寗?馬達直連驅動口。 動力配置:擺線針輪減速機、Y系列電機(可按需方指定動力配置),排氣口增壓輸送時將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置,提高填充效率。【電話/微信咨詢:陳經理18068546632】 防卡式卸料閥材質選項:碳鋼、鑄鐵、不銹鋼、鋁合金、鈦合金、陶瓷系列等?! 饷芊庑读祥y主要用于在氣力輸出系統中,?特別是在需要處理粉塵和小顆粒物料的場合。氣密封卸料閥的工作原理依賴于氣體密封技術,?通過保持一定的氣源壓力,?通常高于管道內壓力0.1個大氣壓,?從而在卸料閥內部形成正負壓差,?確保充氣的壓力大于內部物料的壓力,?從而實現有效的密封。?這種設計不僅提高了卸料閥的可靠性,?還能有效防止物料在輸送過程中的泄漏,?確保系統的正常運行。? 我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥,快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料?!倦娫?微信咨詢:陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢氣密封防卡式卸料閥》 Z (B) FK anti card unloading valve series: Pressure: 2kg/cm 2 system pressure or pressure difference. Increase entrance/exit: square and circular. External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures. Drive mode: chain drive/motor directly connected to the drive port. Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency. Material options for anti card discharge valve: carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, ceramic series, etc.查看詳情 +
-

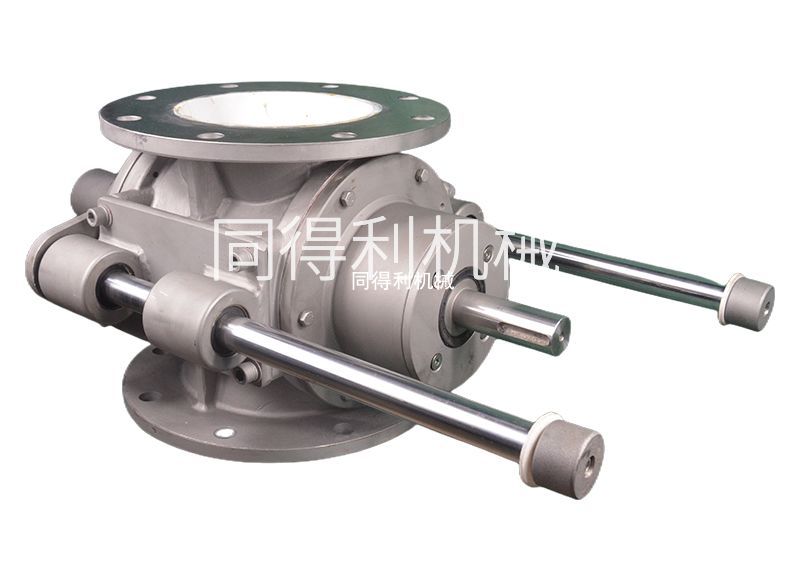

【滑桿式】陶瓷旋轉閥-防腐耐磨耐高溫/ 陶瓷卸料閥,滑桿式旋轉閥,滑桿卸料閥,陶瓷旋轉閥,清洗型旋轉閥
產品介紹滑桿式旋轉閥/卸料閥/星型卸料器/旋轉給料器主要結構:外殼金屬;物料接觸部分:內襯陶瓷、尼龍、四氟、特氟龍、鈦合金、鋁合金、不銹鋼?! 』瑮U式旋轉閥主要用于輸送鋰電池正極材料、磷酸鐵鋰、三元材料、化工、食品、制藥、塑料等?! 』瑮U式旋轉閥特點:物料粘接設備,可以快速清理,快速復位?! 》€(wěn)定性優于其他開拆式閥門,可原地抽出轉子?! ∏逑辞暗牟鹦叮核砷_螺栓手柄,沿導柱將端蓋輕輕拉至極限,抽出葉輪,雙手握住葉輪兩端抽頸取出。清洗后,裝入葉輪(轉動葉輪使花鍵齒合),推入端蓋(轉動活動軸柄使花鍵齒合),擰緊螺栓手柄?! ◎寗臃绞剑烘滘寗?馬達直連驅動?! 恿ε渲茫簲[線針輪減速機,Y系列電機(可按客戶指定動力配置)【電話/微信咨詢:陳經理18068546632】 內襯陶瓷旋轉閥具有平滑的表面和優異的耐腐蝕性,不會吸附有害物質和細菌??梢员3謨Υ婧蛡鬏斀橘|的潔凈,提高生產質量和安全性。陶瓷內襯具有優異的電絕緣性和高硬度,可以提高旋轉閥的性能和穩定性,并減少旋轉卸料閥的磨損和損壞。陶瓷內襯還可以起到防爆的作用。由于陶瓷內襯具有較高的抗壓強度和耐沖擊性,它可以有效地抵御爆炸或高壓氣體產生的沖擊和破壞?! 〕V萃美麢C械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗,秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。【電話/微信咨詢:陳經理 18068546632】 《掃二維碼-添加 陳經理 微信-咨詢滑桿式陶瓷旋轉閥》 Sliding rod rotary valve/discharge valve/star shaped unloader/rotary feeder Main structure: metal shell; Material contact parts: lined with ceramic, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, stainless steel. Sliding rod rotary valves are mainly used for transporting lithium battery cathode materials, lithium iron phosphate, ternary materials, chemical, food, pharmaceutical, plastic, etc. Features of sliding rod rotary valve: Material bonding equipment, can be quickly cleaned and reset. Stability is superior to other detachable valves, and the rotor can be pulled out in place. Disassembly before cleaning: Loosen the bolt handle, gently pull the end cover along the guide column to the limit, extract the impeller, and hold both ends of the impeller with both hands to remove the neck. After cleaning, install the impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle. Drive mode: chain drive/direct motor drive. Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power)查看詳情 +
-

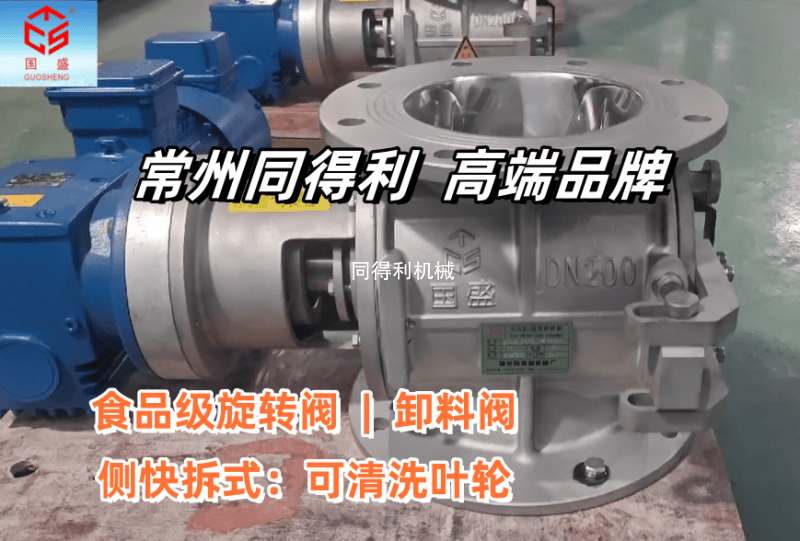

【快拆式】星型卸料器-對標進口品牌/ 卸料閥,星型卸料器,快拆是卸料器,快拆卸料閥,清洗型卸料器
產品介紹快速清洗型旋轉閥/星型卸料器廣泛應用于食品、醫藥、化工對衛生高要求場合,以及更換物料頻繁需要清理卸料的系統。按操作形式可分為滑桿式和快開式,易于快速清理葉腔中粘性物料,安裝方便。 快開門式星型卸料器/卸料閥/旋轉閥/旋轉供料器:松開固定螺栓,打開端蓋門,抽出轉子,清洗后轉子推入殼體內,旋緊定位螺栓?!倦娫?微信咨詢:陳經理 18068546632】 驅動方式:鏈驅動/馬達直連驅動。 動力配置:擺線針輪減速機,Y系列電機(可按客戶指定動力配置) 材質:物料接觸部分:內襯聚氨酯、尼龍、四氟、陶瓷、特氟龍、鈦合金、鋁合金、不銹鋼?!倦娫?微信咨詢:陳經理 18068546632】 《掃二維碼-添加 陳經理 微信-咨詢快拆式星型卸料器》 Quick cleaning rotary valves/star shaped unloaders are widely used in food, medicine, chemical industries with high hygiene requirements, as well as systems that require frequent material replacement and discharge cleaning. According to the operating form, it can be divided into sliding rod type and quick opening type, which is easy to quickly clean viscous materials in the blade cavity and easy to install. Quick opening star shaped unloader/discharge valve/rotary valve/rotary feeder: Loosen the fixing bolts, open the end cover door, extract the rotor, clean it, push the rotor into the housing, and tighten the positioning bolts. Drive mode: chain drive/direct motor drive. Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power) Material: Material contact parts: lined with polyurethane, nylon, PTFE, ceramic, PTFE, titanium alloy, aluminum alloy, stainless steel.查看詳情 +
-

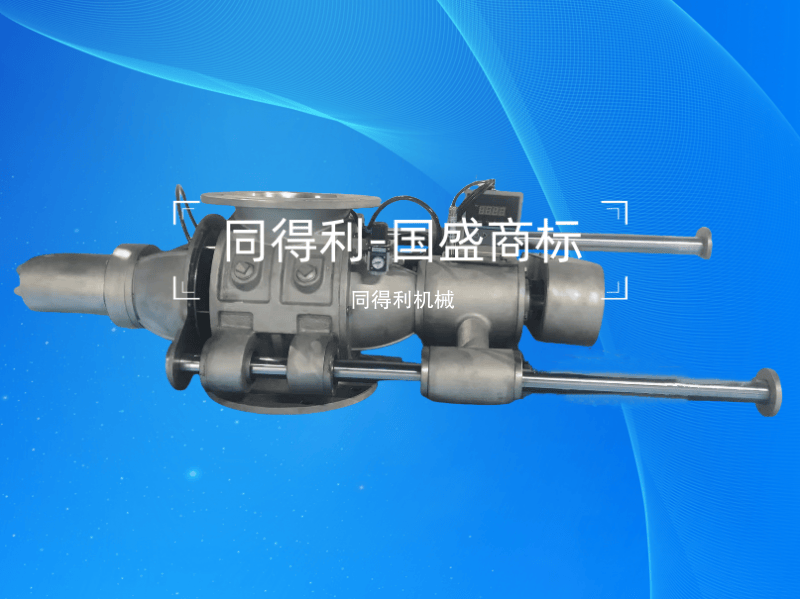

【清洗型】風送滑桿式旋轉閥/ 風送式旋轉閥,滑桿式旋轉閥,清洗型旋轉閥,風送滑桿式旋轉閥
產品介紹風送滑桿式旋轉閥/卸料閥/星型卸料器/旋轉給料閥/旋轉供料器主要結構:外殼金屬;物料接觸部分:內襯陶瓷(也可尼龍、四氟、特氟龍等)?! ≈饕糜谑称?、藥材、鋰電、化工、塑料原料輸送?! √攸c:針對物料粘接,風力直吹轉子清理。快拆清理,快速復位。 風送滑桿式旋轉閥主要材料:不銹鋼304-316.陶瓷氧化鋁,鈦合金、鋁合金、陶瓷系列、尼龍、四氟、不銹鋼等?!倦娫?微信咨詢:陳經理 18068546632】 快速清洗旋轉閥制作精致、成功使用德、日技術制造之精華。產品拆裝靈活、易于清洗。主要用于化工、制藥、食品等行業高衛生標準的物料卸料及經常更換物料的場所工作?! 』瑮U式旋轉閥:清洗前的拆卸。松開活動瑞蓋上的螺旋手柄,沿柱將瑞蓋和轉子一起拉出,松開軸端的螺旋手柄,取出轉子?! 〕V萃美麢C械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗,秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?!倦娫?微信咨詢:陳經理 18068546632】 《掃二維碼-添加 陳經理 微信-咨詢風送滑桿式旋轉閥》 Wind driven sliding rod rotary valve/discharge valve/star shaped unloader/rotary feeding valve/rotary feeder Main structure: metal shell; Material contact part: lined with ceramic (also nylon, PTFE, PTFE, etc.). Mainly used for conveying food, medicinal materials, lithium batteries, chemicals, and plastic raw materials. Features: Targeting material bonding, wind blown rotor cleaning. Quick disassembly and cleaning, quick reset. The main materials of the air supply sliding rod rotary valve include stainless steel 304-316. ceramic alumina, titanium alloy, aluminum alloy, ceramic series, nylon, PTFE, stainless steel, etc. The rapid cleaning rotary valve is exquisitely made, and successfully uses the essence of German and Japanese technology. The product is flexible in disassembly and easy to clean. Mainly used for unloading materials with high hygiene standards in industries such as chemical, pharmaceutical, and food, as well as working in places where materials are frequently replaced. Sliding rod rotary valve: disassembly before cleaning. Release the spiral handle on the activity cover, pull out the cover and rotor together along the column, release the spiral handle on the shaft end, and remove the rotor. Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.查看詳情 +
-

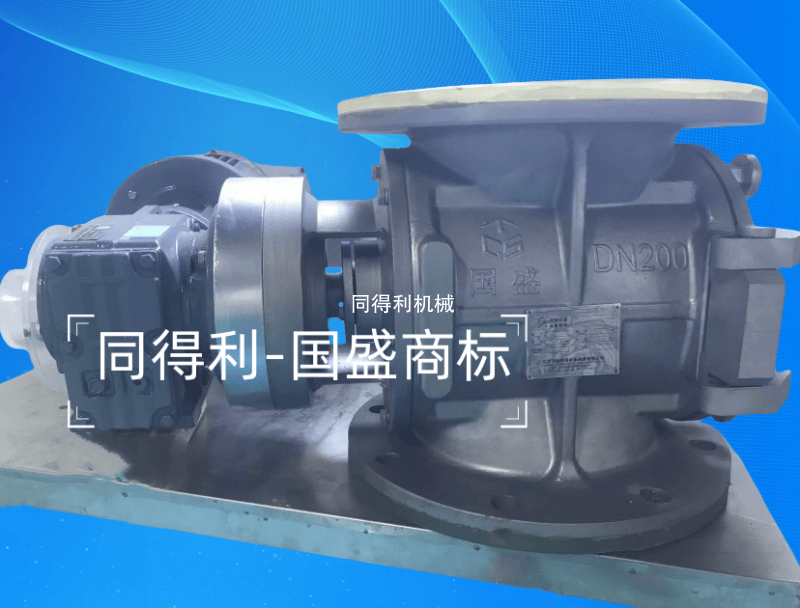

DN200不銹鋼快拆清洗型旋轉閥/ 清洗型旋轉閥,不銹鋼旋轉閥,快拆式旋轉閥,自清潔星型卸料閥,DN200旋轉閥
產品介紹側快拆清洗型旋轉閥主要結構:外殼金屬;物料接觸部分:內襯聚氨酯、尼龍、四氟、陶瓷、特氟龍、鈦合金、鋁合金、不銹鋼。 側快拆旋轉閥主要用于輸送鋰電池正極材料、磷酸鐵鋰、三元材料、化工、食品、制藥、塑料等?! √攸c:物料粘接設備,可以快速清理,快速復位?! 》€(wěn)定性優于其他開拆式閥門,可原地抽出轉子。【電話/微信咨詢:陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢側快拆旋轉閥》 The main structure of the side quick release cleaning rotary valve is: metal shell; Material contact parts: lined with polyurethane, nylon, PTFE, ceramic, PTFE, titanium alloy, aluminum alloy, stainless steel. The side quick release rotary valve is mainly used for transporting lithium battery positive electrode materials, lithium iron phosphate, ternary materials, chemical, food, pharmaceutical, plastic, etc. Features: Material bonding equipment that can be quickly cleaned and reset. Stability is superior to other detachable valves, and the rotor can be pulled out in place.查看詳情 +
-
正負壓稀相輸送旋轉閥-氣力輸送旋轉閥/ 正壓旋轉閥,負壓旋轉閥,氣力輸送旋轉閥,稀相輸送旋轉閥
產品介紹正壓稀相輸送的介質一般采用空氣或氮氣,動力提供一般由羅茨鼓風機提供,氮氣輸送時則有制氮機進行提供。羅茨鼓風機的稀相輸送時,物料在管道中呈懸浮狀態,輸送距離可以達百米,氣流速度較高。The medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. During the dilute phase conveying of Roots blower, the material is suspended in the pipeline, with a conveying distance of up to 100 meters and a high airflow velocity. 由于系統處于正壓,所以密封性要求很高,若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式。Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system materials are blown. 風送式旋轉閥的工作原理是通過閥芯的旋轉來改變物料輸送:粉體/顆粒料/粉料/固體料的通道,?同時依靠密封機構和驅動裝置來保證閥門的密封性能和控制精度?!倦娫?微信咨詢:陳經理18068546632】?The working principle of the pneumatic rotary valve is to change the material conveying channels of powder/particle/powder/solid materials through the rotation of the valve core, while relying on the sealing mechanism and driving device to ensure the sealing performance and control accuracy of the valve. 負壓稀相輸送系統采用負壓羅茨泵動力源,管道輸送壓力呈低真空狀態,管道風速約10~35m/秒,物料在管道里呈霧狀。負壓輸送起點壓力等于或接近大氣壓,終點壓力在-10至~50Kpa之間,管道真空度沿輸送管道逐漸增高。負壓稀相輸送系統也稱為真空稀相輸送系統?!倦娫?微信咨詢:陳經理18068546632】The negative pressure dilute phase conveying system adopts a negative pressure Roots pump power source, and the pipeline conveying pressure is in a low vacuum state. The pipeline wind speed is about 10-35m/s, and the material is in a mist state in the pipeline. The starting pressure of negative pressure conveying is equal to or close to atmospheric pressure, and the ending pressure is between -10 and~50Kpa. The vacuum degree of the pipeline gradually increases along the conveying pipeline. The negative pressure dilute phase conveying system is also known as the vacuum dilute phase conveying system. 常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗,秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等?!倦娫?微信咨詢:陳經理 18068546632】 我公司是集科研、開發、設計、制造、售后服務于一體的環保型機械重 點企業。公司地處經濟發達的長江金三角,坐落在全國聞名的科技示范城-龍城常州,地理位置優越,千年古運河入境而過,沿江高速、京滬高速、滬寧高速縱橫交錯,交通十分便利。 《掃二維碼-添加 陳經理 微信-咨詢正負壓稀相輸送旋轉閥-氣力輸送旋轉閥》Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.Our company is a key environmentally friendly machinery enterprise that integrates scientific research, development, design, manufacturing, and after-sales service. The company is located in the economically developed Yangtze River Golden Triangle, in the nationally renowned science and technology demonstration city - Longcheng Changzhou, with a superior geographical location. The millennium old canal enters the country, and the Yangtze River Expressway, Beijing Shanghai Expressway, and Shanghai Nanjing Expressway crisscross, making transportation very convenient.查看詳情 +
